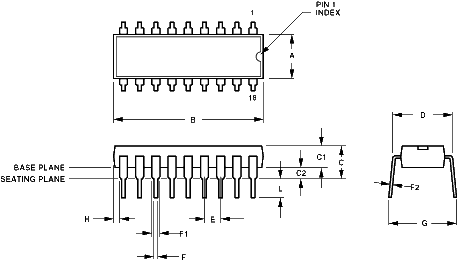

MA2052

18-PIN PLASTIC DIP ~ N PACKAGE SUFFIX

DIMENSIONS
	INCHES		MILLIMETERS		NOTES
	MIN	MAX	MIN	MAX
A	.245	.260	6.22	6.60	1
B	.890	.920	22.61	23.39	1
C	-	.210	-	5.33
C1	.125	.150	3.18	3.81
C2	.015	.055	0.38	1.40	2
D	.300	.325	7.62	8.26	3
E	.100 BSC		2.54 BSC		4
F	.014	.022	0.35	0.56
F1	.045	.070	1.14	1.78
F2	.008	.014	0.20	0.35
G	.300	.400	7.62	10.16	5
H	.005	-	0.13	-
L	.115	.160	2.92	4.06

NOTES:

1. 'A' AND 'B' DO NOT INCLUDE MOLD FLASH OR PROTRUSIONS. MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.006 IN. PER SIDE.

2. 'C2' SHALL BE MEASURED FROM THE SEATING PLANE TO THE BASE PLANE.

3. 'D' SHALL BE MEASURED WITH THE LEADS CONSTRAINED TO BE PERPENDICULAR TO THE BASE PLANE.

4. THE BASIC LEAD SPACING IS 0.100 IN. BETWEEN CENTERLINES. EACH LEAD CENTERLINE SHALL BE LOCATED WITHIN ±0.010 IN. OF ITS EXACT TRUE POSITION.

5. 'G' SHALL BE MEASURED AT THE LEAD TIPS WITH THE LEADS UNCONSTRAINED.

6. CONTROLLING DIMENSION: INCHES. MILLIMETERS SHOWN FOR REFERENCE ONLY.
