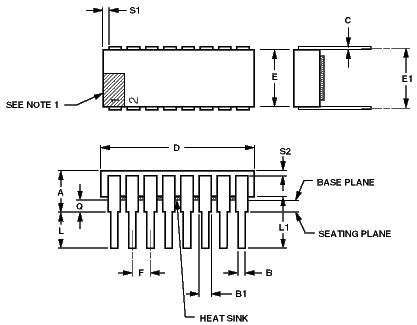

MA2113

16-PIN SIDEBRAZE DIP ~ SP PACKAGE SUFFIX

DIMENSIONS
	INCHES		MILLIMETERS		NOTES
	MIN	MAX	MIN	MAX
A	-	.200	-	5.08
B	.014	.023	0.36	0.58	8
B1	.045	.065	1.14	1.65	2,8
C	.008	.015	0.20	0.38	8
D	-	.840	-	21.34	4
E	.220	.310	5.59	7.78	4
E1	.290	.320	7.37	8.13	7
F	.100 BSC		2.54 BSC		5,9
L	.125	.200	3.18	5.08
L1	.150	-	3.81	-
Q	.015	.060	0.38	1.52	3
S1	.005	-	0.13	-	6
S2	.005	-	0.13	-

NOTES:

1. INDEX AREA; A NOTCH OR A PIN ONE IDENTIFICATION MARK SHALL BE LOCATED ADJACENT TO ONE AND SHALL BE LOCATED WITHIN THE SHADED AREA SHOWN.THE MANUFACTURER'S IDENTIFICATION SHALL NOT BE USED AS A PIN ONE IDENTIFICATION MARK.

2. THE MINIMUM LIMIT FOR DIMENSION 'B1' MAY BE 0.023 IN. (0.58mm) FOR CORNER LEADS.

3. DIMENSION 'Q' SHALL BE MEASURED FROM THE SEATING PLANE TO THE BASE PLANE.

4. THIS DIMENSION ALLOWS FOR OFF-CENTER LID, MENISCUS, AND GLASS OVERRUN.

5. THE BASIC LEAD SPACING IS 0.100 IN. (2.54mm) BETWEEN CENTERLINES. EACH LEAD CENTERLINE SHALL BE LOCATED WITHIN ±0.010 IN. (0.25mm) OF ITS EXACT TRUE POSITION.

6. MEASURE ALL FOUR CORNERS.

7. E1 SHALL BE MEASURED AT THE CENTERLINE OF THE LEADS.

8. ALL LEADS - INCREASE MAXIMUM LIMIT BY 0.003 IN.(0.08mm) MEASURED AT THE CENTER OF THE FLAT, WHEN SOLDER DIP IS APPLIED.

9. 14 SPACES.

10. BRAZE FILLET SHALL BE CONCAVE.

11. CONTROLLING DIMENSIONS: INCHES. MILLIMETERS SHOWN FOR REFERENCE ONLY.
