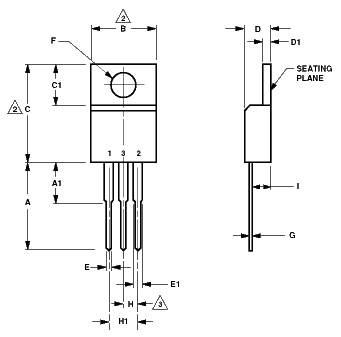

| 3-PIN TO-220 PLASTIC ~ T
PACKAGE SUFFIX |
| DIMENSIONS |
| |
INCHES |
MILLIMETERS |
| MIN |
MAX |
MIN |
MAX |
| A |
.500 |
.562 |
12.70 |
14.27 |
| A1 |
- |
.250 |
- |
6.35 |
| B |
.380 |
.420 |
9.66 |
10.66 |
| C |
.560 |
.625 |
14.23 |
15.87 |
| C1 |
.230 |
.270 |
5.85 |
6.85 |
| D |
.140 |
.190 |
3.56 |
4.82 |
| D1 |
.045 |
.055 |
1.14 |
1.39 |
| E |
.020 |
.045 |
0.51 |
1.14 |
| E1 |
.045 |
.070 |
1.14 |
1.77 |
| F |
.139 |
.161 |
3.53 |
4.09 |
| G |
.014 |
.022 |
0.36 |
0.56 |
| H |
.090 |
.110 |
2.29 |
2.79 |
| H1 |
.190 |
.210 |
4.83 |
5.33 |
| I |
.080 |
.115 |
2.04 |
2.92 |
|
 |
NOTES:
| 1. |
CONTROLLING DIMENSION:
INCHES. MILLIMETERS SHOWN FOR REFERENCE ONLY.
|
 |
'B' AND 'C' DO NOT INCLUDE
MOLD FLASH OR PROTRUSIONS. MOLD FLASH OR
PROTRUSIONS SHALL NOT EXCEED 0.006 IN. PER
SIDE.
|
 |
THE BASIC LEAD SPACING IS
0.100 IN. BETWEEN CENTERLINES. EACH LEAD
CENTERLINE SHALL BE LOCATED WITHIN ±0.010
IN. OF ITS EXACT TRUE POSITION.
|
|
